Type 2 AC surge protector - 3-phase+N

DS44-280/G
Part Number: 461112
DS44-280/G
  • Type 2 AC Multipolar surge protector
  • In : 20 kA
  • Imax total : 40 kA
  • Pluggable module for each phase
  • Remote signaling option
  • EN 61643-11, IEC 61643-11 compliance
  • UL1449 ed.5
used mainly for primary protection of single and 4- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Select another reference:
    SPD type
    		2
    Network
    		 230/400 V 3-phase+N
    AC system
    		 TT-TNS
    Nominal line voltage
    		 Un 230 Vac
    Max. AC operating voltage
    		Uc 280 Vac
    Temporary Over Voltage (TOV) Charasteristics - 5 sec.
    Without disconnection
    		 UT 335 Vac withstand
    Temporary Over Voltage (TOV) Charasteristics - 120 mn
    Without disconnection or with safety disconnection
    		 UT 440 Vac disconnection
    Temporary Over Voltage N/PE (TOV HT)
    Without disconnection or with safety disconnection
    		 UT 1200 V/300A/200 ms withstand
    Residual Current
    Leakage current to Ground
    		 Ipe None
    Operating current
    Continious current at Uc
    		 Ic 0.5 mA
    Follow current
    		If None
    Nominal discharge current
    15 x 8/20 µs impulses
    		 In 20 kA
    Max. discharge current
    max. withstand @ 8/20 µs by pole
    		 Imax 40 kA
    Total Maximum discharge current
    max. total withstand @ 8/20 µs
    		Imax Total 40 kA
    Connection mode(s)
    		 L/N and N/PE
    Protection mode(s)
    		 Common/Differential mode
    Residuel voltage at 5 kA
    @ 5 kA (8/20µs)
    		 Up-5kA 0.9 kV
    Protection level L/N
    @ In (8/20µs)
    		 Up L/N 1.3 kV
    Protection level N/PE
    @ In (8/20µs)
    		 Up N/PE 1.5 kV
    Residual voltage at 10 kA
    @ 8/20µs
    		 Up-10kA 1.1 kV
    Admissible short-circuit current
    		 Isccr 25 000 A
    Technology
    		 MOV+GDT
    SPD configuration
    		 3-phase+Neutral
    Connection to Network
    		 By screw terminals: 2.5-25mm² / by bus
    Format
    		 Plug-in modular box
    Mounting
    		 Symmetrical rail 35 mm (EN 60715)
    Housing material
    		 Thermoplastic UL94 V-0
    Operating temperature
    		 Tu -40/+85°C
    Protection rating
    		 IP20
    Failsafe mode
    		 Disconnection from AC network
    Disconnection indicator
    		 1 mechanical indicator by pole
    Spare module(s)
    		 DSM40-280+DSM40G-600
    Remote signaling of disconnection
    		 option DS44S-280/G: output on changeover contact
    Dimensions

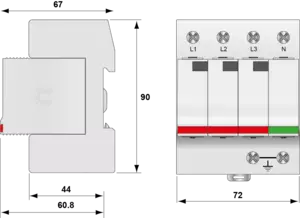

    		 See diagram
    Weight
    		 0.325 kg
    Standards compliance
    		 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
    Certification
    		 UL / CSA /EAC / TUV
    Thermal disconnector
    		 Internal
    Installation ground fault breaker
    		 Type 'S' or delayed
    Fuses
    		 Fuses type gG - 50 A
