Cital Products

RJ45 surge protector for POE++

MJ8-POE-A/SD
Part Number: 581545
MJ8-POE-A/SD
  • POE++ compatible -Strong mounting for DIN-rail for vibration enviroments
  • Gigabit Ethernet (Cat.5E)
  • Shielded enclosure and connectors
  • 2 kA discharge capability
  • UL497B certified
  • IEC 61643-21, EN 61643-21 compliance
MJ8-POE-A/SD is designed with more stronger mounting DIN-Rail bracket for fitting vibration environment like wind turbines. This product protect sensitive data-processing equipment connected to a POE++ (Power over Ethernet) network from transient overvoltages, is deployed in signal network applications with data transmission speeds of 100 and 1000 Mbps. The surge protector is housed in a shielded enclosure with high quality RJ45 shielded jacks. The transient protection circuit is based on high energy gas discharge tubes (GDT) and a network of fast response silicon avalanche diodes (SAD) to achieve sharp clamping of very large surge events.
Select another reference:
Network
 Gigabit Ethernet (Cat.5E)
Nominal line voltage
 Un 48 Vdc
Max. DC operating voltage
 Uc 60 Vdc
Max. frequency
 f max. 250 MHz
Max. data rate
 10/100/1000 Mbps
Insertion loss
 < 1 dB
Max. load current
 IL 2000 mA
Protection level
Following the test category C3 (IEC61643-21) - Line/Line
 Up 70 V
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp 500 A
Line/Line Nominal discharge current
C2 Category
In L/L 500 A
Line/Ground Nominal discharge current
8/20µs Test x 10 - C2 Category
 In L/PE 2000 A

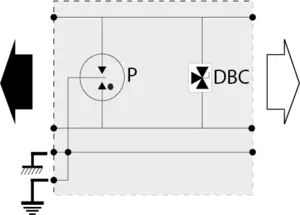

Technology
 GDT+Clamping diode
SPD configuration
 8 wires+shielded
Connection to Network
 RJ45 shielded connectors Female input/output
Format
 Metallic box with connectors input/output
Mounting
 Mounting flange,Screw lug, DIN Rail
Accessory(s) provided
 DIN rail adapter, screw, screw nut, earthing plate, countersunk screw, cable shoe
Housing material
 Aluminium
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Short-circuit - transmision cut-off
Disconnection indicator
 Transmission interrupt - default mode 2
Pinout
 (1-2)(3-6)(4-5)(7-8)

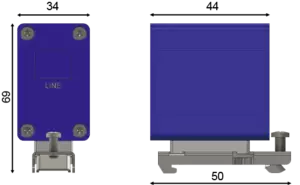

Dimensions
 See diagram
Weight
 0.120 kg
Standards compliance
 IEC 61643-21 / EN 61643-21 / UL497 B IEEE 802-3af/3at/3bt
Certification
 UL listed
